Digital Centrifuge
Model：DSC-303SD
Digital Centrifuge is equipped with digital speed display, so users can set required speed accurately with no overshoot. Metal housing is sturdy and durable.

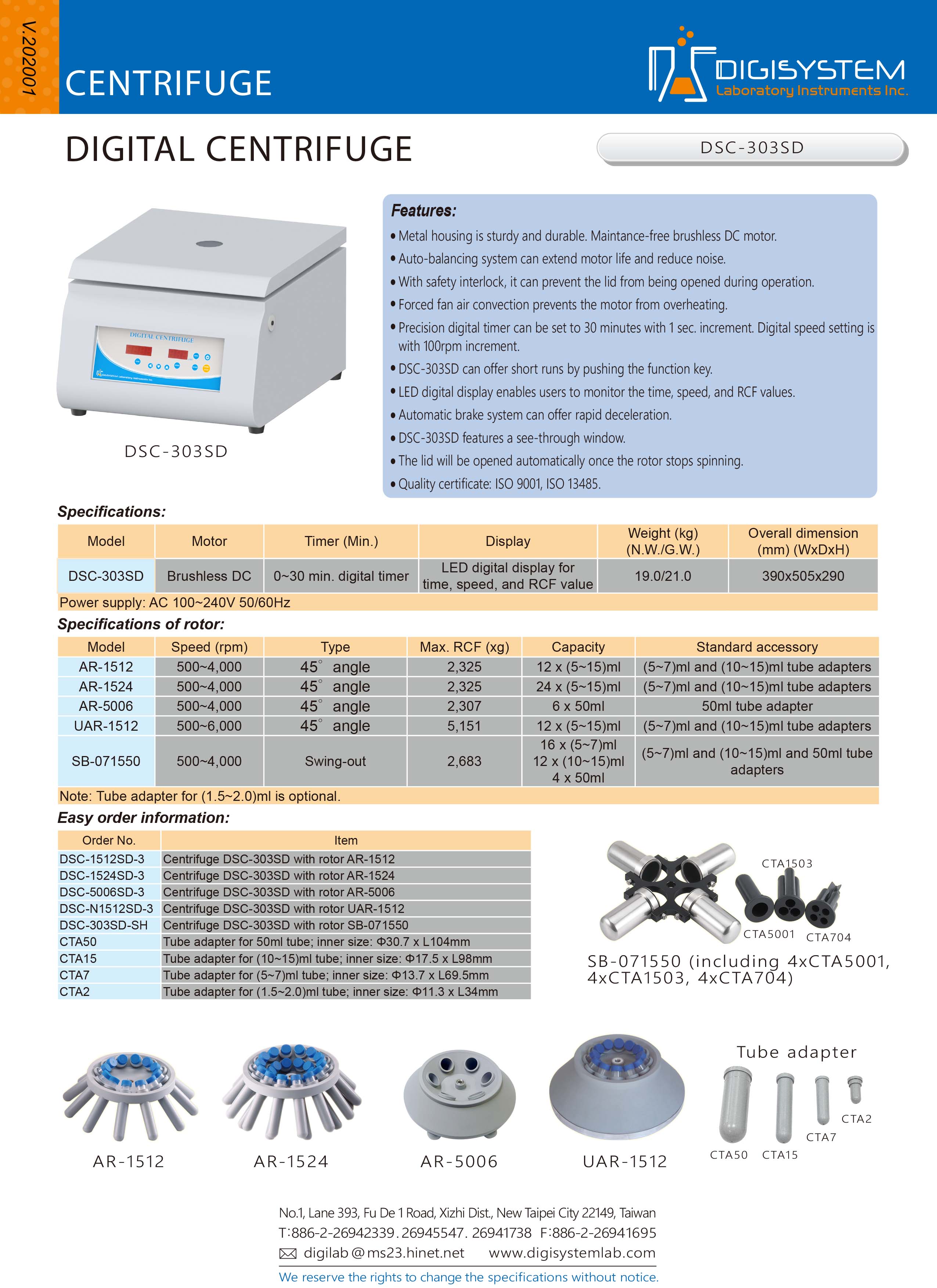

Download
Add to inquiry
Features
• Auto-balancing system can extend motor life and reduce noise.
• With safety interlock, it can prevent the lid from being opened during operation.
• Forced fan air convection prevents the motor from overheating.
• Precision digital timer can be set to 30 minutes with 1 sec. increment. Digital speed setting is with 100rpm increment.
• DSC-302SD can offer short runs by pushing the function key.
• LED digital display enables users to monitor the time, speed and RCF value.
• Automatic brake system can offer rapid deceleration.
• DSC-303SD features a see-through window.
• The lid will be opened automatically once the rotor stops spinning.
• Quality certificate: ISO 9001, ISO 13485.
Specification
| Model | DSC-303SD | ||||
| Order number | DSC-1512SD-3 | DSC-1524SD-3 | DSC-5006SD-3 | DSC-303SD-SH | DSC-N1512SD-3 |
| Speed | 500~4000rpm | 500~4000rpm | 500~4000rpm | 500~4000rpm | 500~6000rpm |
| Timer | 0~30 min. digital timer | ||||
| Motor | DC Brushless motor | ||||
| Display | LED digital display for time, speed and RCF | ||||

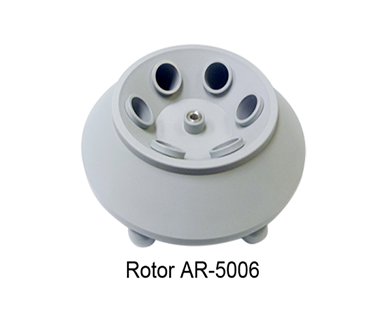

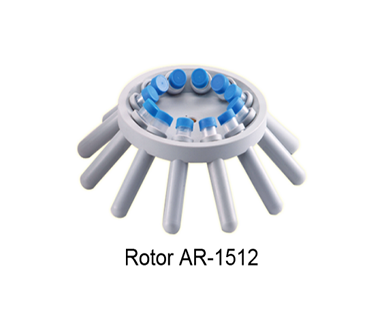

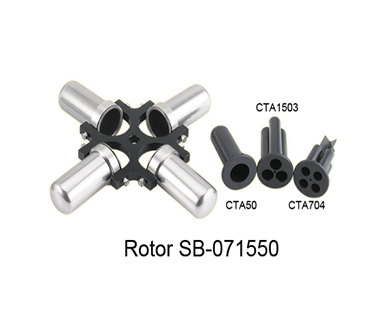

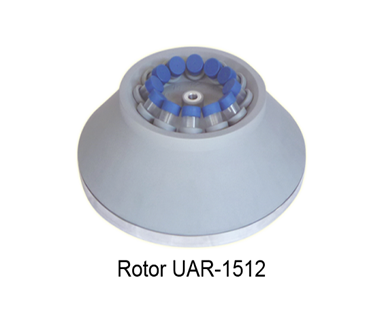

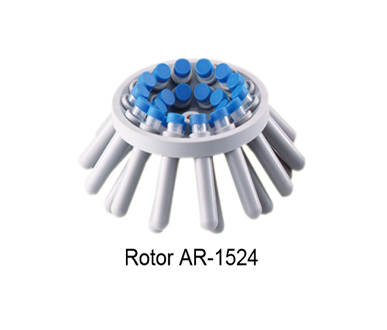

| Rotor | AR-1512 | AR-1524 | AR-5006 | SB-071550 | UAR-1512 |
| Rotor type | 45∘angle | 45∘angle | 45∘angle | Swing-out | 45∘angle |
| Max. R.C.F. | 2,325g | 2,325g | 2,307g | 2,683g | 5,151g |
| Capacity | 12x(1.5~15)ml | 24x(1.5~15)ml | 6x50ml | 16x(5~7)ml 12x(10~15)ml 4x50ml |
12x(1.5~15)ml |
| Standard accessory | (1.5~2.0)ml &(5~7)ml & (10~15)ml tube adapter |
(1.5~2.0)ml &(5~7)ml & (10~15)ml tube adapter |
50ml tube adapter |
(5~7)ml, (10~15)ml, and 50ml tube adapter |
(1.5~2.0)ml &(5~7)ml & (10~15)ml tube adapter |
| Weight (kg) | N.W. 19.0 / G.W. 21.0 | ||||
| Overall dimension | W390xD505xH290mm | ||||
| Power supply | AC 100~240V 50/60Hz | ||||
