Digital Micro Centrifuge
• Metal housing is sturdy and durable. Maintance-free brushless DC motor.
• Auto-balancing system can extend motor life and reduce noise.
• With safety interlock, it can prevent the lid from being opened during operation.
• Forced fan air convection prevents the motor from overheating.
• Precision digital timer can be set to 15 minutes with 1 sec. increment. Digital speed setting is with 100rpm increment
• DSC-103SD can offer short runs by pushing the function key.
• LED digital display enables users to monitor the time, speed, and RCF value.
• Automatic brake system can offer rapid deceleration.
• DSC-103SD features a see-through window.
• The lid will be opened automatically once the rotor stops spinning.

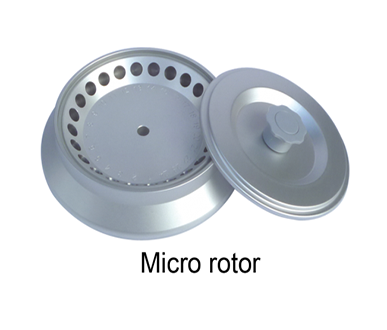

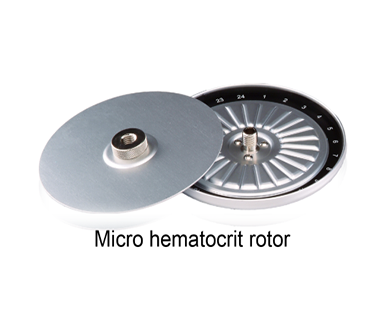

• DSC-103SD is a combo centrifuge which can accommodate micro or micro hematocrit rotors.
• Quality certificate: ISO 9001, 13485.
Model | DSC-103SD | |
Order number | DSC-103SD-HT | DSC-103SD-MAR |
Speed | 500~12,000rpm | 500~12,000rpm |
Timer | 0~15 min. digital timer | 0~15 min. digital timer |
Motor | DC brushless motor | DC brushless motor |
Rotor | HT-24 | MAR-24 |
Max. R.C.F. | 14,808g | 13,199g |
Capacity | 24 x capillary tube (Diam. 1.5x75mm) | 24 x (1.5~2.0)ml |

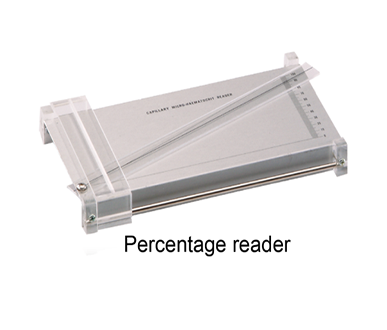

Standard accessory | Percentage reader (Aluminum) | None |

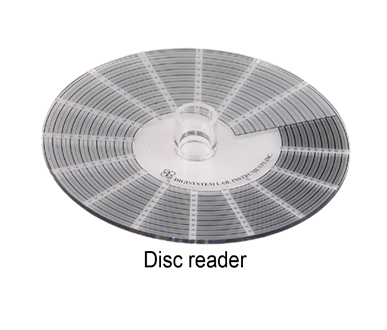

Optional accessory | Disc reader (plastic) | None |
Weight (kg) | N.W. 13.8 / G.W. 15.3 | N.W. 13.8/ G.W. 15.3 |
Overall dimension | W290xD400xH260mm | W290xD400xH260mm |
Power supply | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz |
Download

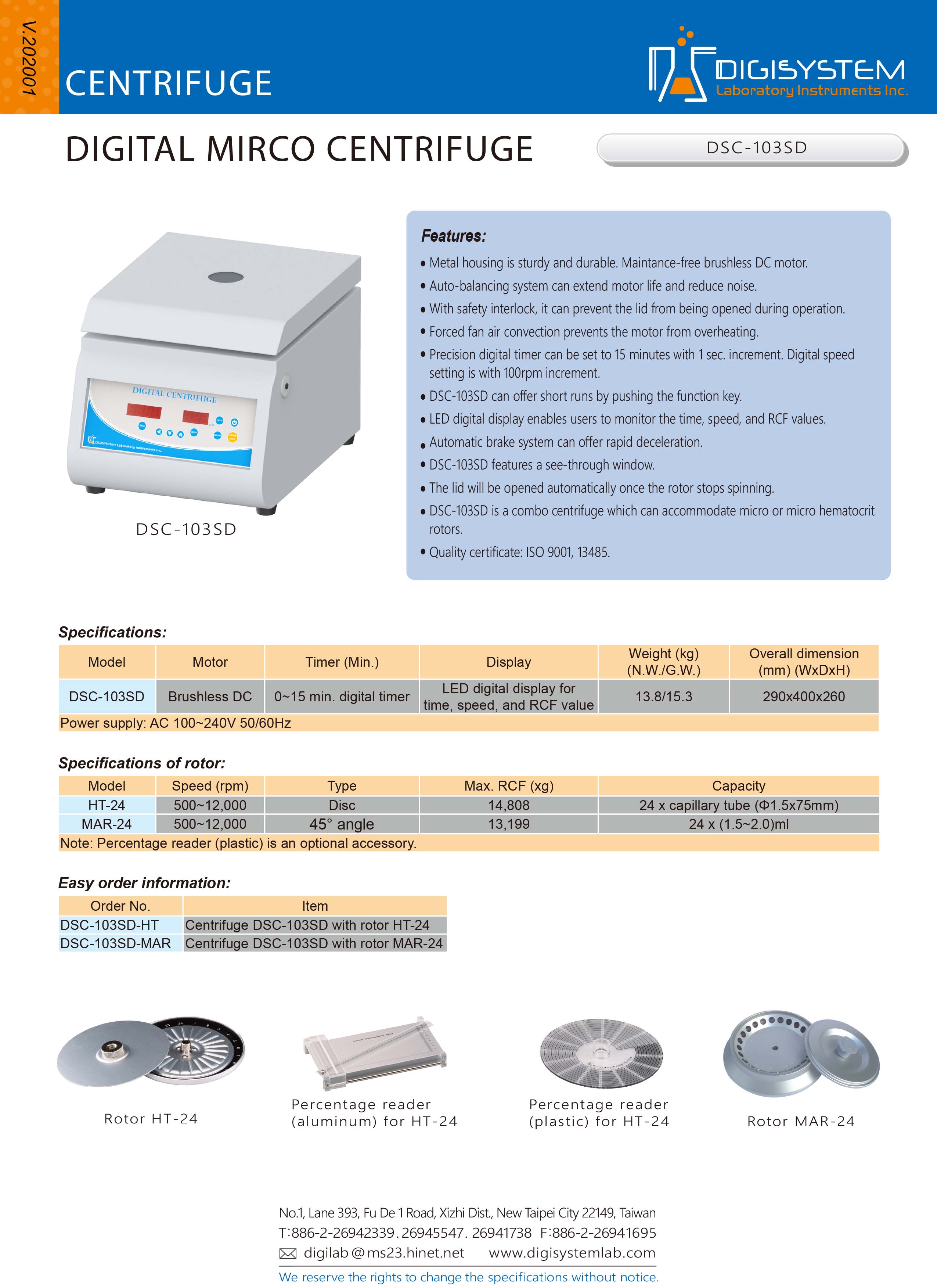

- Centrifuge DSC-103SD catalog Download
- Centrifuge DSC-103SD with rotor HT-24 manual (PDF format) Download
- Centrifuge DSC-103SD with rotor MAR-24 manual (PDF format) Download
- Centrifuge DSC-103SD with rotor HT-24 manual (Word format) Download
- Centrifuge DSC-103SD with rotor MAR-24 manual (Word format) Download
