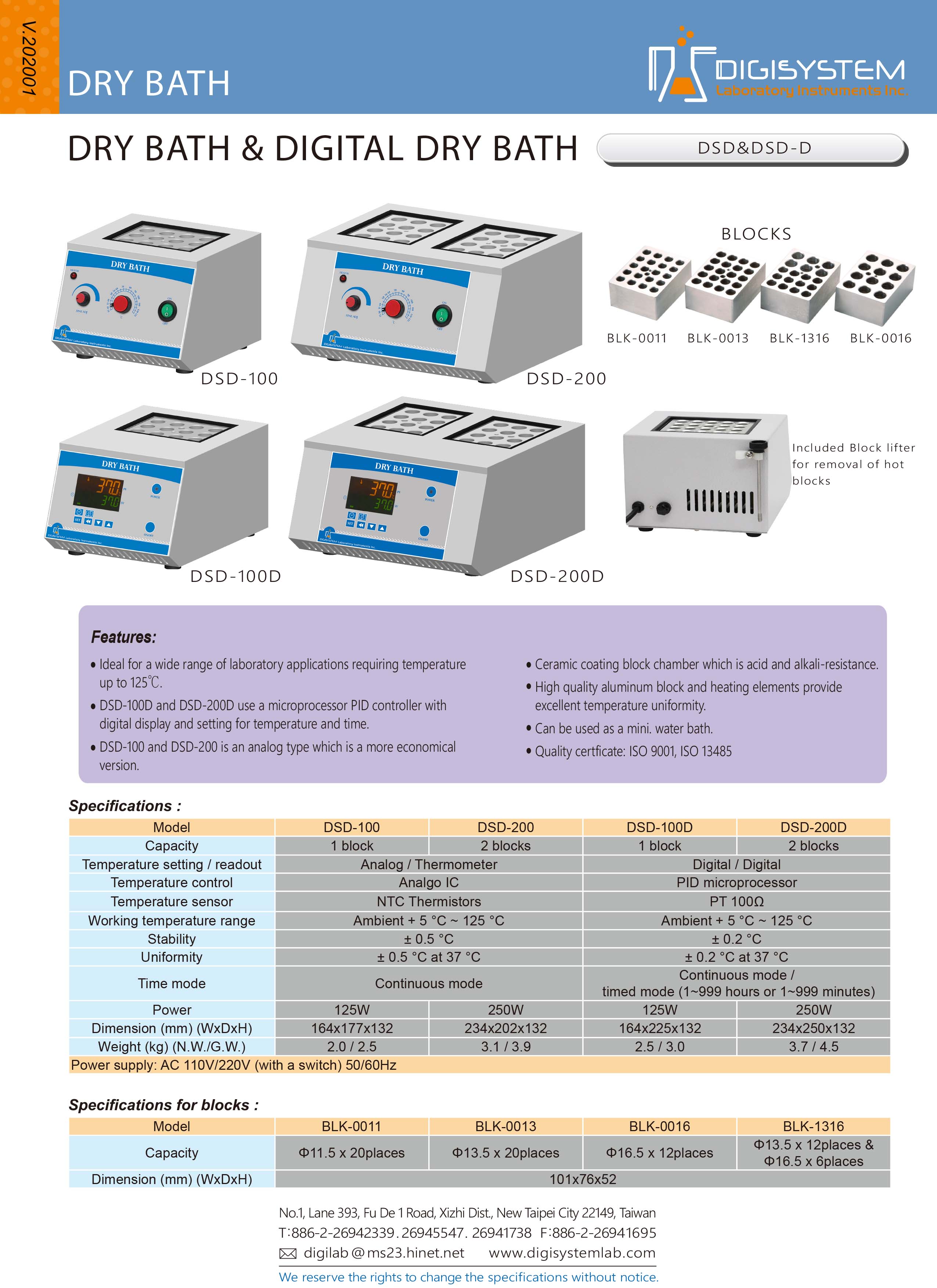

Digital Dry Bath
Model：DSD-200D
Digital Dry bath DSD-200D with 2 blocks uses a microprocessor PID controller with digital dispaly and setting for temperature and time.
Download
Add to inquiry
Features
• Ideal for a wide range of laboratory applications requiring temperature up to 125℃.
• Ceramic coating block chamber which is acid and alkali-resistance.
• Block lifter supplied.
• High quality aluminum block and heating elements provide excellent temperature uniformity.|
• Can be used as a mini. water bath.
• Quality certification: ISO 9001, ISO 13485
Specification
| Model | DSD-200D | |
| Block capacity | 2 | |
| Temperature readout | Digital | |
| Temperature setting | Digital | |
| Temperature control | PID microprocessor | |
| Temperature sensor | PT100Ω | |
| Stability | ±0.2℃ | |
| Uniformity | ±0.2℃ at 37℃ | |
| Working temperature range | Ambient +5℃ ~125℃ | |
| Power watts | 250W | |
| Time mode | Continuous mode / Timed mode (999 hours / 999 minutes) | |
| Weight (kg) (N.W./G.W.) | 3.3 / 3.8 | |
| Dimension | W234xD250xH132mm | |
| Power supply | AC 110V 50/60Hz (220V 50/60Hz available) | |

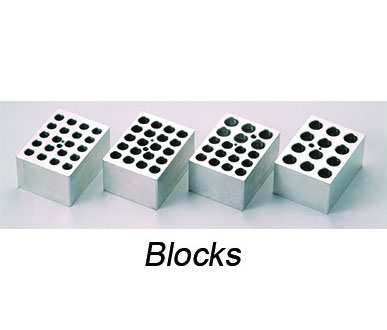

Blocks:
| Model | BLK-0011 | BLK-0013 | BLK-0016 | BLK-1316 |
| Capacity | Φ11.50mm x 20 places |
Φ13.50mm x 20 places |
Φ16.50mm x 12 places |
Φ13.50mm x 12 places & Φ16.5mm x 6 places |
| Dimension | W101xD76xH52mm | |||
